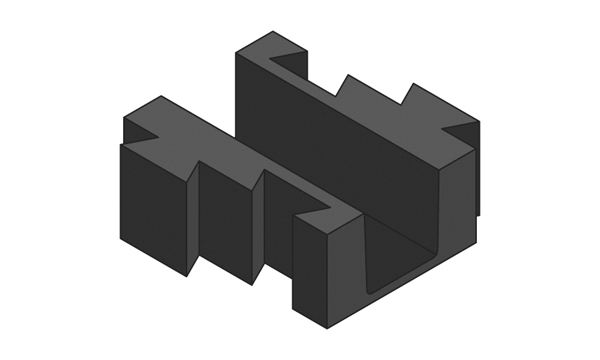

100 Hose Ramp Middle
Dimensions: 290 x 295 x 118 mm
Weight: 5 kg
Max Load: 44 Tonnes
The 100 Hose and Cable Ramp is the central portion of a modular system that allows for many hoses and cables to be protected. The ramp section of this system is 11176. This part has one open top channel. The channel is 108mm at the base opening up to 115mm at the top. The depth of each channel is 110mm. Each part can be joined to another to make a ramp for an infinite number of cables, see 11176.
