Dimensions: 1200mm long x 160mm max height
Weight: 35.0 kg

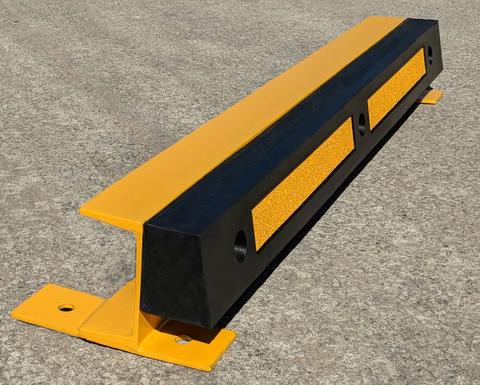

The A584 kerb is made from 150×70 Steel U beam welded to 8mm thick steel base plates. Attached to this is a tough rubber buffer with recessed yellow glass bead tape. This kerb is designed so that the fixing stud nearest the tyre is covered by the rubber element ensuring that no damage can be done to the tyre by the kerb.
The steel is hot dip galvanised and yellow powder coated over.
Each 8mm thick base plates has 2 x 19mm dia holes.
Use A301 M16X125 through bolts for fixing.
